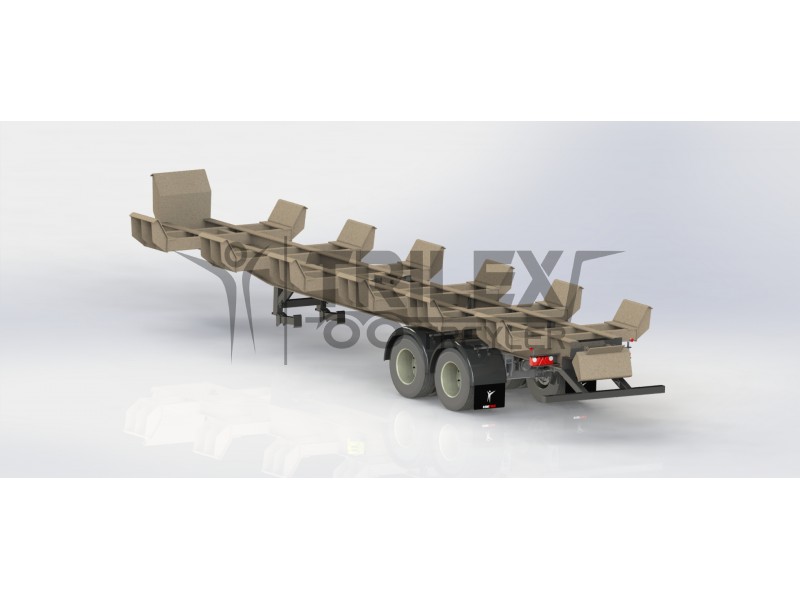

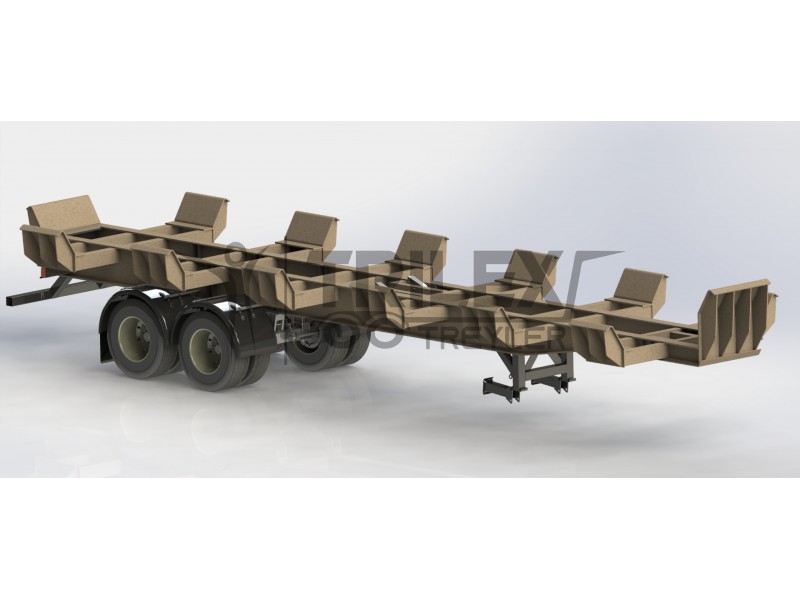

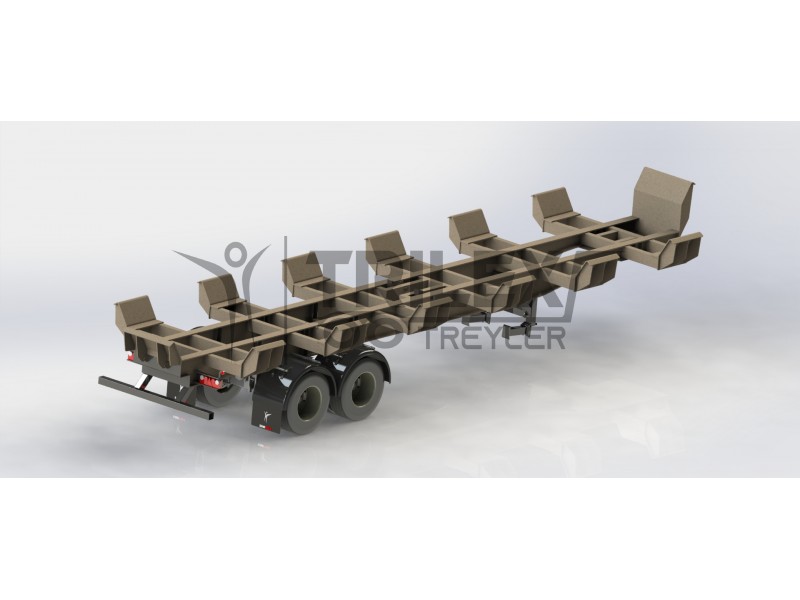

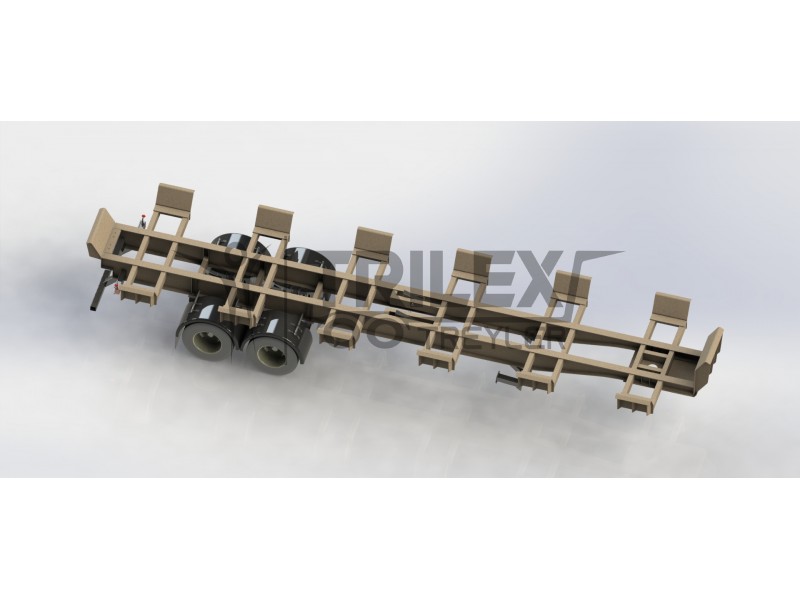

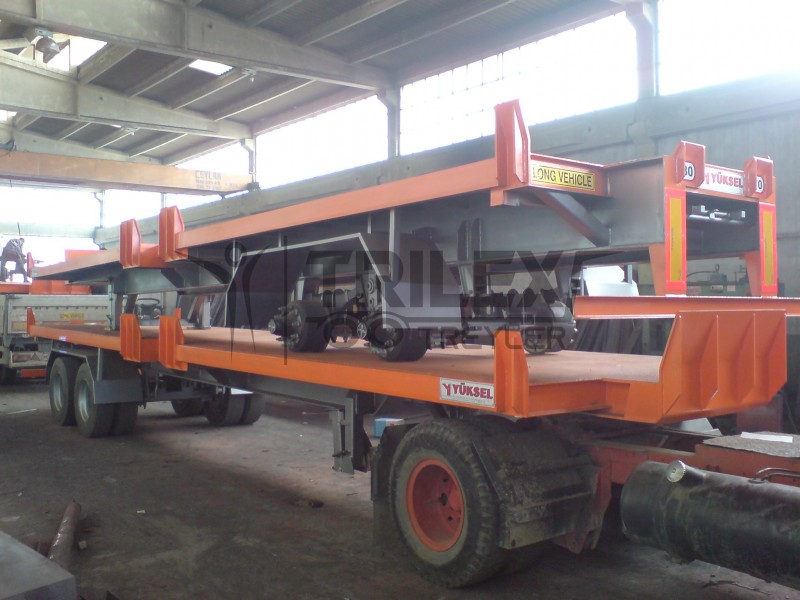

Terminal / port trailers (also called bomb cart trailer, in-port container transfer trailer or mafi type container transfer trailer) is using for container transfer in the port and terminal area.
Terminal trailers plays an important role when needing carry

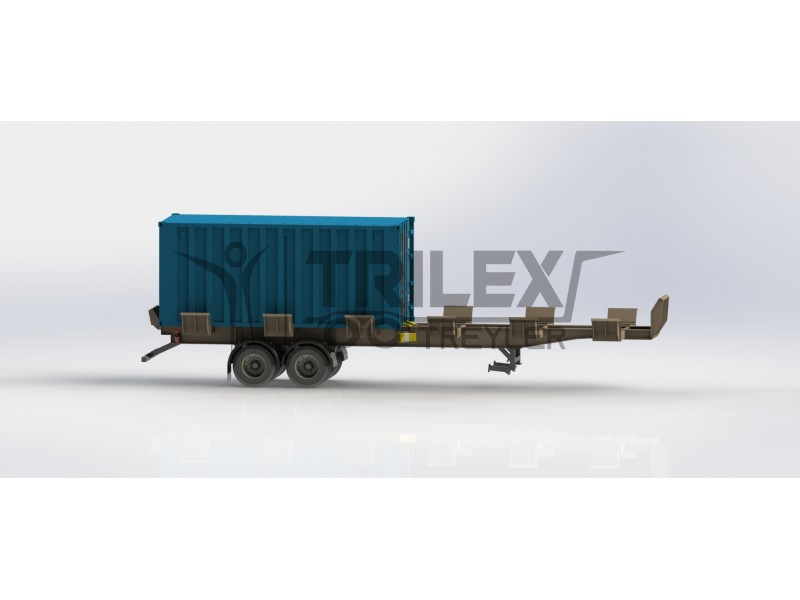

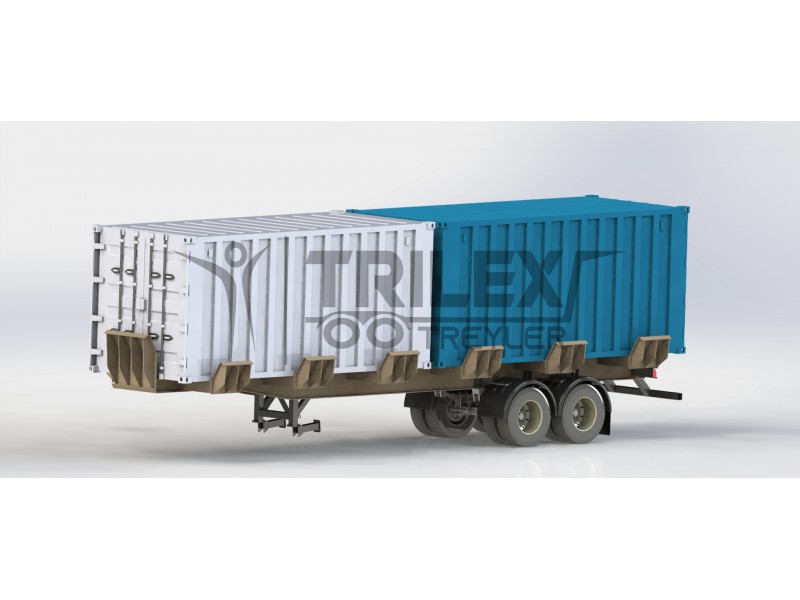

multi-dimensional container transportation. 2 x 20’, 1 x 40’ or 1 x 45’
standard ISO containers carrying is possible with this trailer.

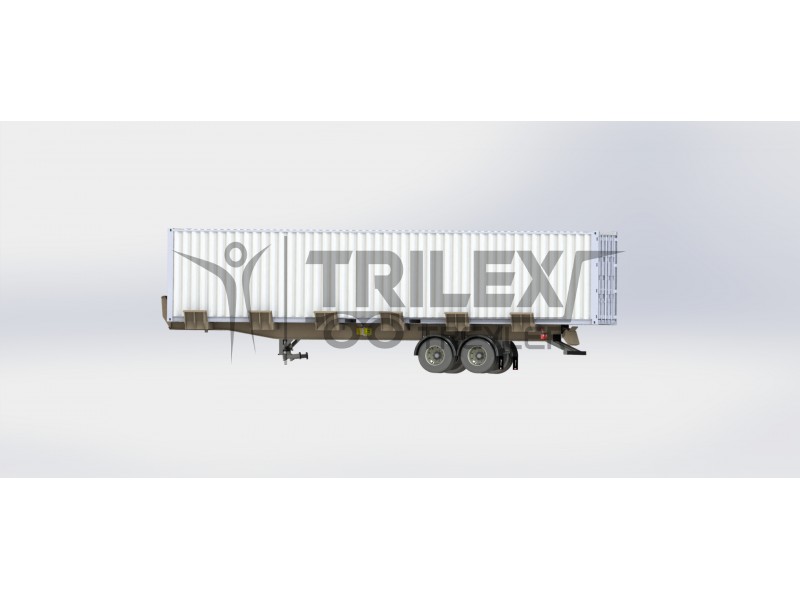

To carry a 45' container; rear guide stopper is produced
with detachable bolt connection (optional folding structure). Because of this;
although the trailer is designed for 40' container transportation, it can
be used for 45' container transportation.
- 65 tons max. load capacity (for standard production)
- Special manufacturing options according to customer needs
- Optional suspension, tyre or material combinations
* Please
contact with us for any information
"Terminal & Port Trailer / Bomb Cart Trailer" - Brochure
"Terminal & Port Trailer / Bomb Cart Trailer" - Details
"Terminal & Port Trailer / Bomb Cart Trailer" - Technical Drawing
E-Mail: info@trilex.com.tr
WhatsApp / Viber: +90 543 692 6276 (Mr. Ahmet -
M.Sc. Mechatronics Engineer)
* TRILEX TREYLER is a foreign trade company and the manufacturer is BÜYÜKYÜKSELDAMPER HİD. MAK. SAN. LTD. ŞTİ. (Trademark Name: SEMITURK)
| Semi Trailer Main Structure | |
| Product Type & Model | Mafi Type Bomb Cart / Terminal Semi-Trailer |
| Main Chassis Material | ST-52 or equivalent steel (Optional special Swedish steel for light weight design) |
| Total Length | 12.635 mm (Optional design with any size) |
| Total Height from Ground | 1.985 mm (Optional design with any size) |
| Semi-Trailer Platform Height | 1.585 mm (Optional design with any size) |
| Total Width | 2.830 mm (Optional design with any size) |
| Semi Trailer Tare Weight | 8 Tons (Varies with optional properties design) |
| Semi Trailer Gross Weight | 70 Tons (For only inside of terminal usage) |
| Semi-Trailer Axle Specification | |
| Number of Axles | 2 axles |
| Axle Brake Type | Balance type with heavy duty leaf spring system |
| Each Axles Capacity | 20 tons capacity (with max. 30 km/h speed) |
| Each Sequence Twin/Single Wheel | Twin wheel (Depends on tire dimension) |
| Semi Trailer Suspension Equipment | |
| Suspension Type | Heavy duty leaf spring system (Optional compatible any combination) |
| Trailer Tires & Rims Specifications | |
| Tire Dimensions | 295/80 R 22.5 dimension (Optional any compatible size) |
| Rim Dimensions | 9,00x22,5” steel rims with standard tire dimension |
| Total Tire & Rim Unit | With 295/80 R 22.5 option, totally 8 units at standard option |
| Semi-Trailer Brake System | |
| Brake System | Air brake system |
| Brake Bellows | 30” Service brake bellows, 30x30” emergency brake bellows (Optional any size) |
| Semi-Trailer Electrical Equipment | |
| Electrical Input Voltage | Standard 24V, optional 12V |
| Socket Type | Standard 7, optional 15 pins or any type distribution cable |
| Lighting Functions | Brake, signal, stop, reversing light |
| Reflectors | Reflector application suitable for traffic regulations |
| Other Standard Equipment | |
| King-Pin | 2” bolt-connected, interchangeable with 3½" (D:152 kN - Type: H50-X) |
| Landing Legs | Mechanically reinforced feet suitable for heavy loading |
| Parking Chock with Handle | 1 set parking chock with handle |
| Axle Demount Key | 1 unit axle demount key |
