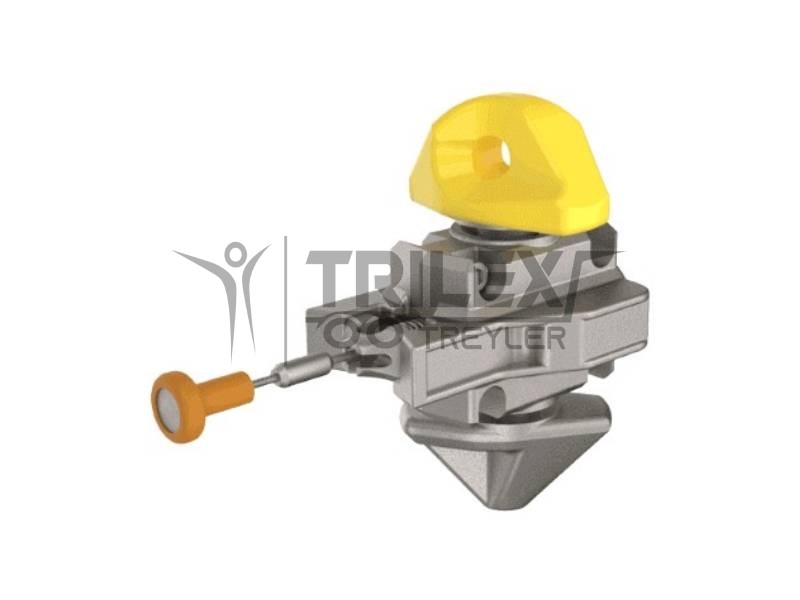

Semi-automatic twist lock single wire is an
intermediate twist lock that used to secure two containers together (via
container corner casting locking). It has a breaking load of 500 kN and is
available with right or leftlocking mechanism.

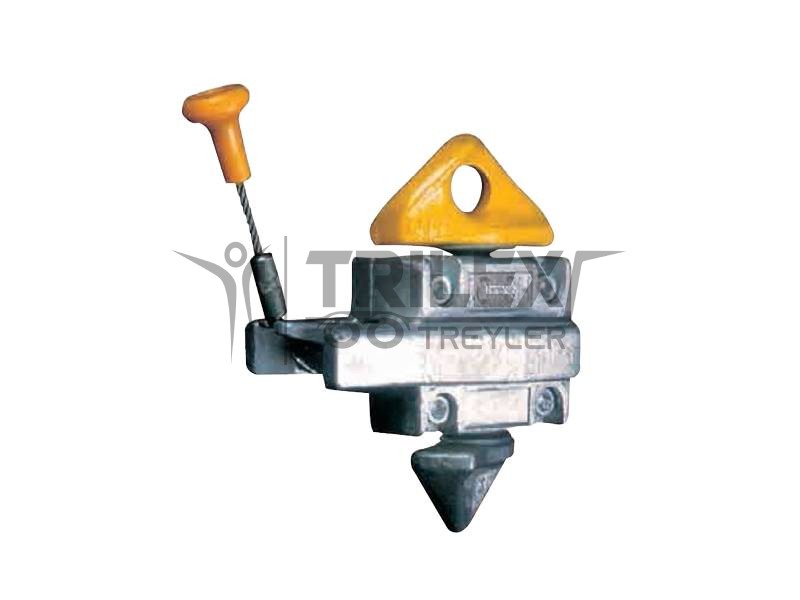

Semi-automatic twist lock are the most
commonly used connectors for shipping containers. They consist of a metal
casting with a rotating mechanism that locks into the corner casting of a
container. Twist locks allow containers to be stacked or locked side by side,
providing a safe and reliable connection.
Traditional shipping container twist locks are locked and unlocked semi-automatically (or optional manual type) using operating levers.
Material |
| Safe Working Load | Breaking Load | Weight |
Forged cone and
ductile iron Housing | Tension Shear Compress | 250 kN 210 kN 550 kN | 500 kN 420 kN 1000 kN | ~ 5,7 kg |
