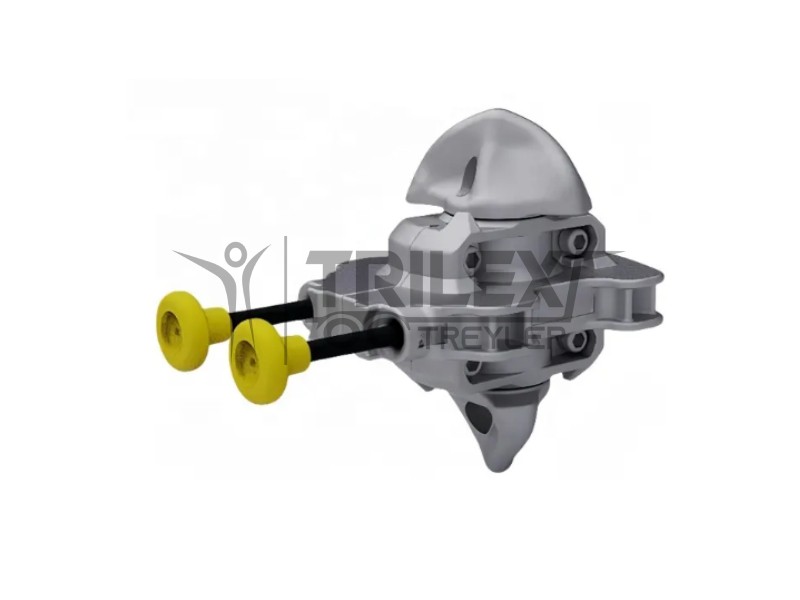

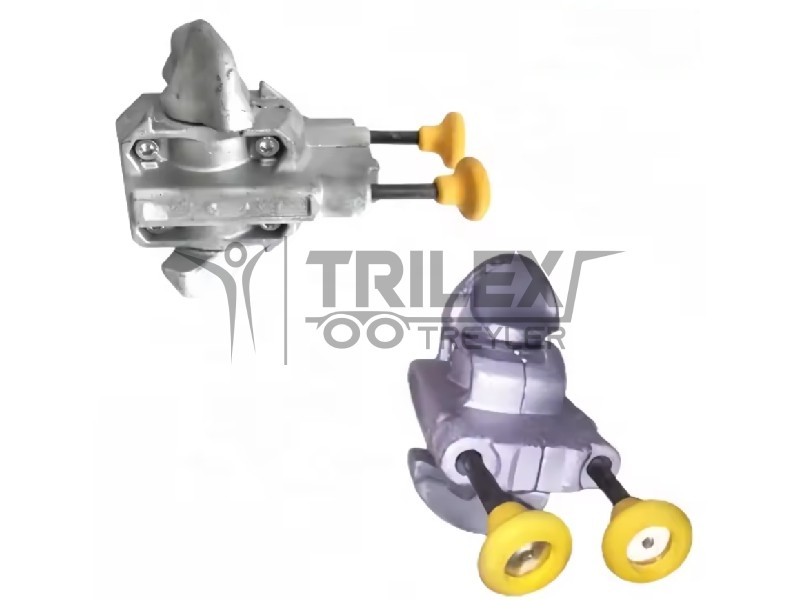

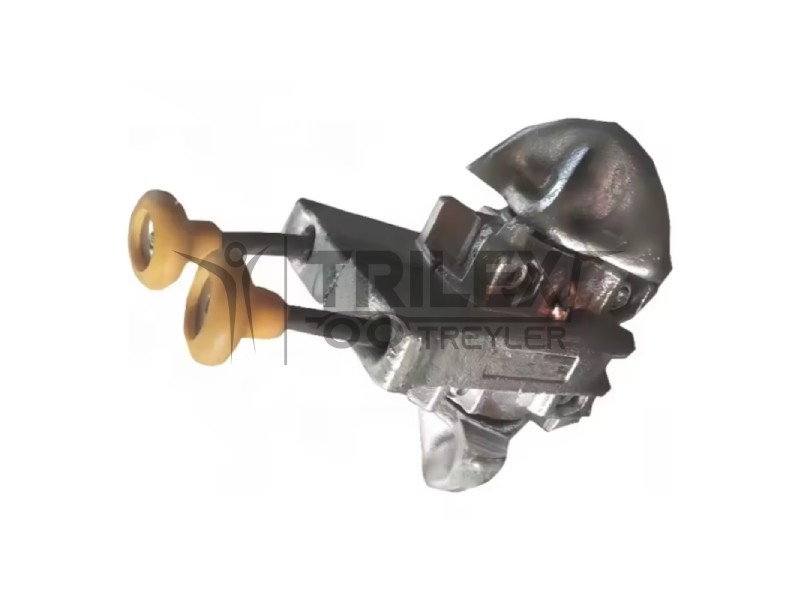

Semi-automatic twist-lock with double wire is used to secure two containers together. When two containers are place on each other the semi-automatic closes automatically because of the weight. The two wires are then used to release the top, or bottom cone.

Semi-automatic twist lock are the most commonly used connectors for shipping containers. They consist of a metal casting with a double wire mechanism that locks into the corner casting of a container. Twist locks allow containers to be stacked or locked side by side, providing a safe and reliable connection.

Traditional shipping container twist locks are locked and unlocked automatically (or optional manual type) using operating levers.

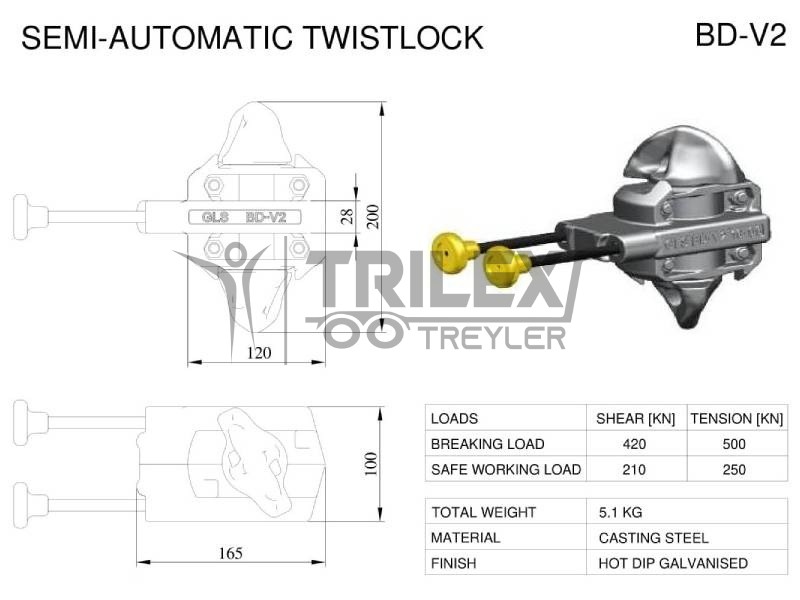

Material



Safe Working

Load

Breaking

Load

Weight

Forged cone and ductile iron Housing

Fension

Shear

Compress

250 kN

210 kN

550 kN

500 kN

420 kN

1100 kN

6.5kg
